Showing all 8 results

COA-15 MAX – DB-15 to Terminal Block Adapter for MAX

Need to convert the DB-15 connector to the euroblock removable screw terminals? The Connect O’ Adapter 15 MAX will do the job. The COA-15 MAX is designed to plug into the male 15-pin D-Sub connector on the WW1 IDC “MAX” or StarGuide II/III.

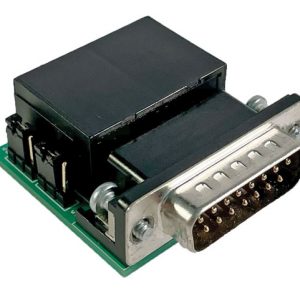

COA-15/RJ – DB-15M to RJ45 Breakout Adapter

The Broadcast Tools COA-15/RJ is a DB-15M to RJ45 Breakout Adapter used to convert GPIO xNode General Purpose Outputs (GPOs) to an RJ45 connector. The COA-15/RJ also breaks out the GPIO ports 5 GPIs to their own RJ45 jack for ease of installation. Using the COA-15/ RJ, DB-15M to dual RJ45 adapter you can easily interface the GPO output from a GPIO xNode port with the optional Broadcast Tools Box O’ Relays 6 via standard Cat5/6 cabling converting the port’s 5 GPOs to 5 isolated SPDT dry contact closure outputs on pluggable screw terminal block.

COA-37 XDS/RJ – DB-37 to RJ45 Adapter for XDS

Here’s another problem solver from Broadcast Tools for the XDS Pro or StarGuide II/III satellite receivers! The Connect O’ Adapter 37 XDS/RJ provides an effective way to convert a male DB-37 relay connector to four RJ45 jacks that can be connected to the GPI-16 Plus/RJ interface using Cat5 cables.

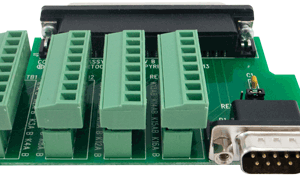

COA-37 XDS/Serial – DB-37 to Terminal Block Adapter for XDS

Here’s another problem solver from Broadcast Tools for the XDS or StarGuide II/III satellite receivers! The Connect-O-Adapter 37 is a DB-37F to terminal block adapter which breaks out all 16 relay outputs and the RS-232 Netcue data (DB-9F) from your satellite receiver.

COA-9 XDS/MAX – DB-9 to Terminal Block Adapter

Need to convert your satellite receiver’s DB-9 audio connector to the euro-block removable screw terminals? The Connect O’ Adapter 9 XDS/MAX will do the job. The COA-9 XDS/MAX is designed to plug into the male 9-pin D-Sub connector on the XDS, WW1 IDC “MAX” or StarGuide II / III satellite receiver and break out the analog and digital audio pins.

COP-2 – DB-9 to Terminal Block Adapter w/ Level Trimmers

Need to convert your satellite receiver’s DB-9 audio connector to the euro-block removable screw terminals? The Connect O’ Pad 2 will do the job. The COP-2 is designed to plug into the male 9-pin D-Sub connector on the XDS, WW1 MAX, NON-Option B SFX, StarGuide II/III satellite receivers and break out the analog and digital audio pins. It allows for analog audio output level adjustments via multi-turn trimmers.

COP-2/RJ – DB-9 to RJ45 Adapter w/ Level Trimmers

The COP-2/RJ converts a DB-9 connector to a standard pinout RJ45 audio jack and allows for analog audio output level adjustment via multi-turn trimmers. Alternatively, fixed-level AES digital audio switch is selectable. Compatible with XDS, Wegener iPump (Analog Output Only), WW1 MAX, NON-Option B IDC SFX, StarGuide II and Starguide III satellite receivers.

COP-3 – DB-9 to Terminal Block Adapter w/ Level Trimmers

The COP-3 provides an effective way to convert the DB-9 connector to euroblock removable screw terminals and allows for analog audio output level adjustments via multi-turn trimmers. Compatible with Option B SFX Satellite receivers used by NPR.
