Showing all 7 results

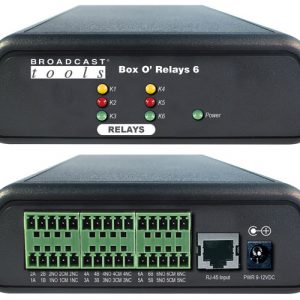

Box O’ Relays 6 – Six Channel Isolated Relay Module (BOR-6)

The Broadcast Tools Box O’ Relays 6 (BOR-6) is a six channel optically isolated relay module, following in the footsteps of the original Box O’ Relays 4 from over twelve years ago. The Box O’ Relays 6’s new design is perfect for converting GPO outputs from AoIP systems and other devices to dry contact closures. In addition to six independent relays, the six sections may be configured via dipswitch into three relay pairs for flip-flop (set/reset) operation*.

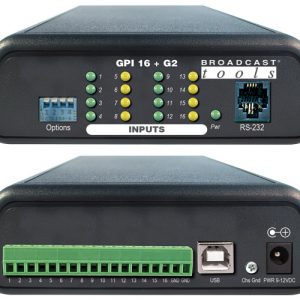

GPI-16 + G2 – Serial/USB GPI/Trigger Interface

The GPI-16 + G2 interfaces 16 general purpose logic/trigger inputs to a USB serial port or to an RS-232 serial COM port. The user may select from two pre-programmed serial formats; the “PIP” GPI format, which is used on most Broadcast Tools audio switchers, or the legacy AT-1616 format making it perfect for broadcast automation applications.

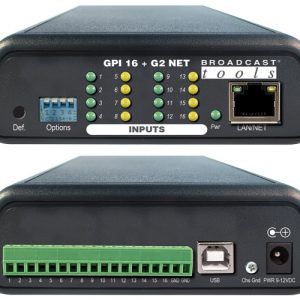

GPI-16 + G2 NET – USB/Ethernet GPI/Trigger Interface

The GPI-16 + G2 NET interfaces 16 general purpose logic/trigger inputs to a computer’s USB serial port or to an Ethernet Network via TCP or UDP socket connection. The user may select from two pre-programmed serial formats; the “PIP” GPI format, which is used on most Broadcast Tools audio switchers, or the legacy AT-1616 format making it perfect for broadcast automation applications.

GPI-16 Plus/RJ – Serial/USB GPI/Trigger Interface

The GPI-16 Plus/RJ interfaces 16 general purpose logic inputs to users PC COM or USB port. The user may select from two pre-programmed serial formats; the “PIP” GPI format, which is used on most of Broadcast Tools switcher, or the legacy AT-1616 format. The GPI-16 Plus/RJ has four RJ45 input connectors and can be connected Broadcast Tools COA-37 XDS/RJ adapter using CAT5 cables.

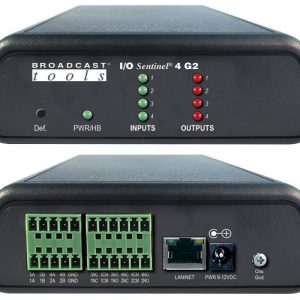

I/O Sentinel® 4 G2 – Web-based GPIO Interface

The I/O Sentinel® 4 G2 is a robust, full-featured Ethernet based data acquisition and remote-control device with four optically isolated status (logic) inputs and four programmable relays. The I/O Sentinel® 4 G2’s four optically isolated status/logic inputs may be configured for wet or dry (contact closure) status/logic monitoring. The four one-amp SPDT relay outputs may be configured for ON, OFF, pulsed or reboot operation.

SRC-16 Plus – Serial GPIO Interface

The SRC-16 Plus is connected through an RS-232 or RS-422/485 serial port and can notify your PC software program of GPI/trigger inputs on 16 optically isolated inputs and allows your software to control any of the 16 SPDT, 1-amp relay outputs.
