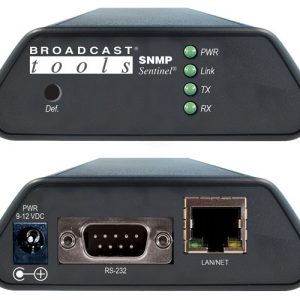

SNMP Sentinel – Serial to Ethernet/SNMP Converter

SNMP Sentinel – Serial to Ethernet/SNMP Converter

The SNMP Sentinel is an Ethernet/SNMP device server for adding network control and monitoring to Broadcast Tools RS-232 serial controlled switchers and GPIO devices via SNMP. Features include: RS-232 device interface, HTML5 web interface with HTTPS and SNMP, configurable device profile, unit ID, and serial baud rate.

SRC-16 – Serial Remote Control

SRC-16 – Serial Remote Control

Connection through an RS-232, RS-422 or RS-485 serial port with baud rates up to 38400 the SRC-16 can notify your PC software program that any of 16 optically isolated inputs has been opened or closed and allows your software to control sixteen SPDT, 1-amp relays.

SRC-16 + G2 – Serial/Ethernet GPIO Interface

SRC-16 + G2 – Serial/Ethernet GPIO Interface

The Broadcast Tools® SRC-16 + G2 is a computer GPIO interface to the real world. Using RS-232 serial or TCP/UDP Ethernet port the SRC-16 + G2 can notify your PC software program that any of 16 optically isolated inputs have been opened or closed and allow your software to control any of the 16 SPST, 1-amp (form A) relays.

SRC-4 – Serial GPIO Interface

SRC-4 – Serial GPIO Interface

The SRC-4 interfaces four optically isolated GPI/trigger inputs and four SPDT relay outputs to a RS-232 serial port. The SRC-4 can notify a users PC software program that any of four optically isolated trigger inputs have been opened or closed and allows the users software to control four SPDT relay outputs. Communication with the SRC-4 is accomplished via short “burst” type ASCII commands from the users PC.

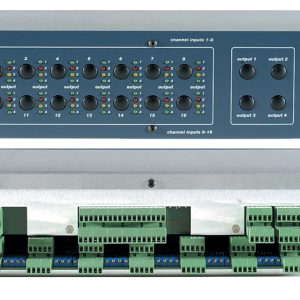

SS 16.4 – Analog Stereo Matrix Switcher

SS 16.4 – Analog Stereo Matrix Switcher

Available by special order only. The SS 16.4 provides matrix audio switching of 16 stereo inputs to 4 stereo plus 4 monaural outputs. Matrix switching allows any or all inputs to be assigned to any or all of the 4 outputs. The SS 16.4 may be controlled via front panel switches, contact closures, 5-volt TTL/CMOS logic and/or the multi-drop RS-232 or RS-485 serial port. Installation is simplified with removable euro-block screw terminals.

See: ACS 4.4 G2
